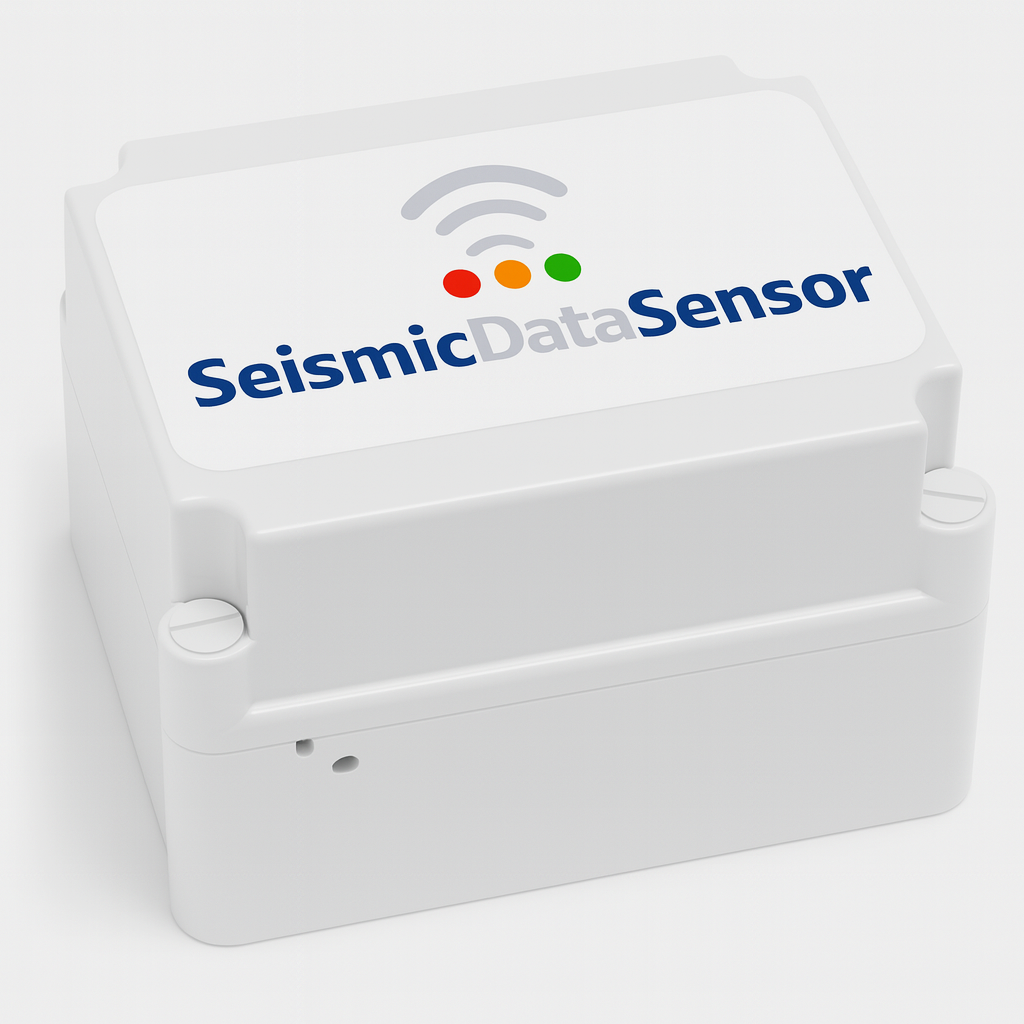

SeismicDataSensor™

The SeismicDataSensor is a low-cost tri-axial accelerometer designed for continuous Structural Health Monitoring. These sensors deliver seismic data from buildings, bridges, and infrastructure to your fingertips within minutes, allowing rapid decision-making after earthquakes.

filter_center_focus

Low-Cost, low-Noise Accelerometers

Capture accurate, low-noise motion data so structural responses are recorded clearly during seismic events.

wifi

Flexible Connectivity

Built to operate in any environment with support for 4G, Wi-Fi, and Ethernet - ensuring reliable data delivery wherever the sensor is installed.

data_saver_on

On-Device Data Buffer

Local storage ensures data is preserved during connectivity interruptions or after power outages.

view_timeline

Timestamp Synchronisation

GPS clocks allow time synchronisation between sensors, enabling precise comparison of responses across floors and structural elements.

power

Power Backup

Integrated backup power keeps sensors running during outages, ensuring continuous monitoring when it matters most.

check

Managed Installation

Installation, operation, and maintenance are handled by our dedicated technicians.

Specifications

Sensor	±8 g tri-axial MEMS accelerometer Noise Density: 45-70 µg/√Hz Sample rate: 250 sps
Timing	Dedicated NTP server over internet connection Optional GPS clock for accurate timing External GPS antenna support for improved signal
Storage	32 GB industrial grade SD card storage Triggered events stored on SD card at 250 sps 100 days continuous data stored on SD card at 62.5 sps
Communication	Cellular modem, supporting 2G/3G/4G External cellular antenna support for improved signal Wi-Fi or Ethernet internet connectivity available
Power	100-240VAC power adapter Optional dedicated UPS Power over Ethernet available
Software	Monitor and upload events which exceed a threshold Upload data where another sensor in the same building has triggered Real-time performance monitoring for quick diagnostics and maintenance Firmware updates supported over internet connection

Built for Our Structural Health Monitoring Platform

Learn more about our platform arrow_forward

Verified by BRANZ

BRANZ has been commissioned to compare the test outputs from our SeismicDataSensors™ against input from their Moog actuator operating known displacements and frequencies. Contact us for a copy of the full report.
