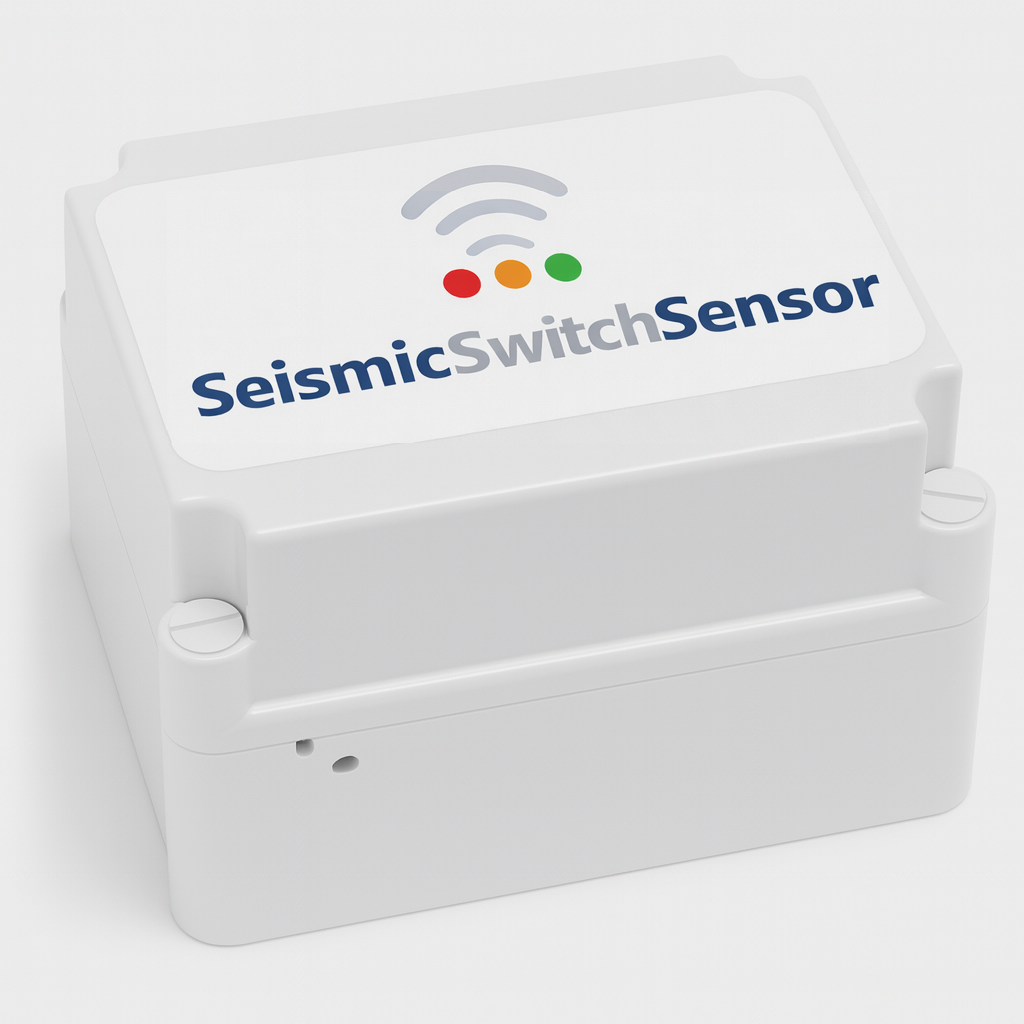

SeismicSwitchSensor

The SeismicSwitchSensor bridges the gap between detection and response. Functioning as a relay interface for PLCs or control panels, it can be activated when strong shaking is detected or as part of an early warning network, enabling automated shutdowns or alerts. A powerful tool for resilient infrastructure.

Specifications

Relay
  • 3x relay modules, each with separate programmable trigger logic
  • Standalone device or extension to an existing seismic sensor
  • COM, NO, and NC screw terminals
  • 10A 250VAC/30VDC, 15A 120VAC
Communication
  • Cellular modem, supporting 2G/3G/4G
  • External cellular antenna support for improved signal
  • Wi-Fi or Ethernet internet connectivity available
Power
  • 100-240VAC power adapter
  • Optional dedicated UPS
  • Power over Ethernet available
Software
  • Trigger from strong accelerometer shaking, network alerts, or custom logic
  • Real-time performance monitoring for quick diagnostics and maintenance
  • Firmware updates supported over internet connection
